MTL | Reed R5040 Clamp Meter, Trms, 1000A AC/DC W/Temp | Reed Instruments | Measuring Tools-Measuring Tools

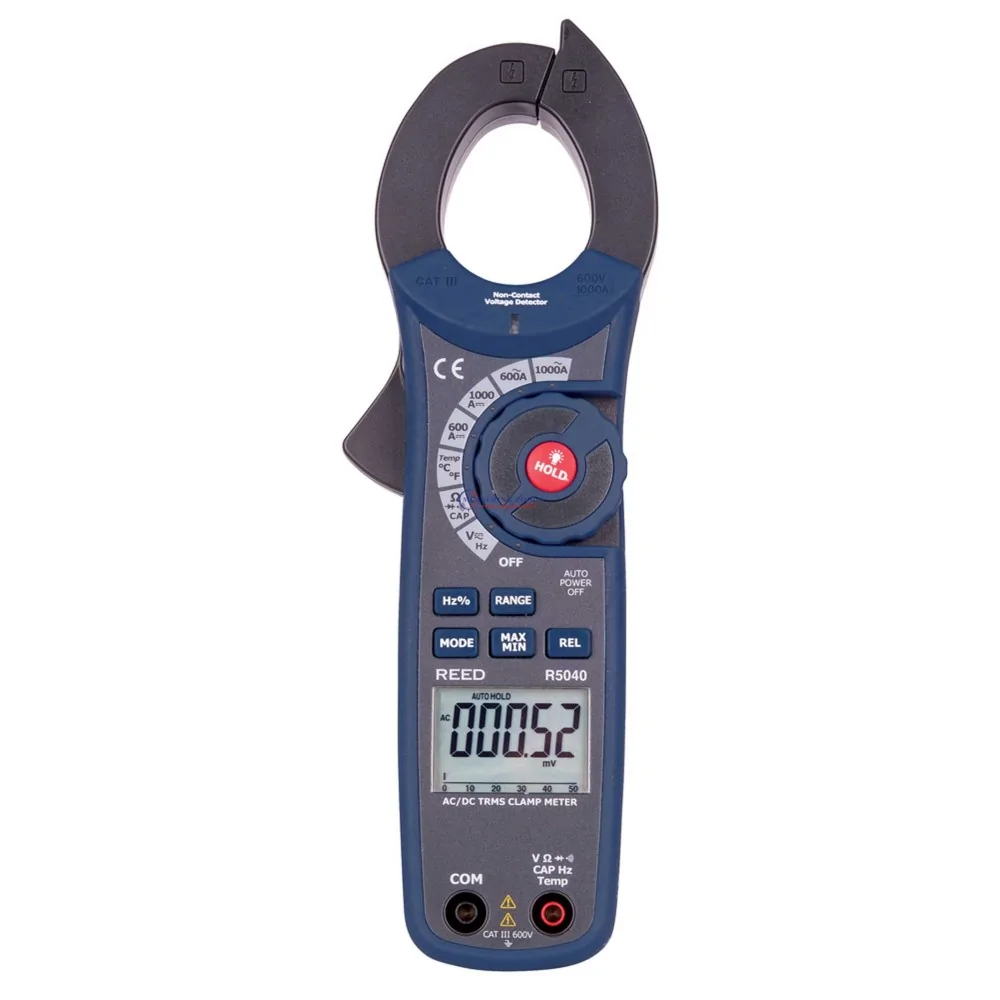

Reed R5040 Clamp Meter, Trms, 1000A AC/DC W/Temp Reed Instruments R5040

Product Code: R5040
Stock 2-3 Days

Overview

This autoranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring a 50,000 count backlit LCD ...
This autoranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring a 50,000 count backlit LCD display with a 61-segment analog bargraph and double molded plastic housing, the R5040 keeps track of min/max readings and includes a non-contact voltage detector built into the clamp tip.

Features
  • Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature
  • 50000-count backlit LCD display and analog bargraph
  • Low battery and overrange indicators
  • Built-in non-contact voltage detector with LED indicator
  • True RMS AC measurements
  • Min/Max, display hold and relative mode
  • Diode test and continuity check functions
  • Durable double molded plastic housing
  • Cat. III 600V safety rating
Ideal Applications for the REED R5040
Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems.
Facilities, building maintenance and electricians looking to troubleshoot electrical equipment installation problems.

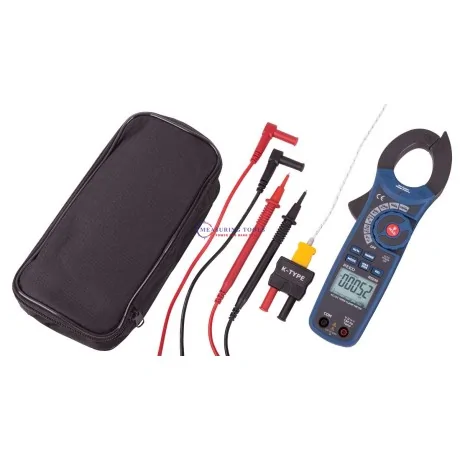

What's included with the REED R5040

  • AC/DC True RMS Clamp Meter
  • Test Leads
  • Thermocouple Wire Probe
  • Thermocouple Adapter
  • Battery
  • Soft Carrying Case
