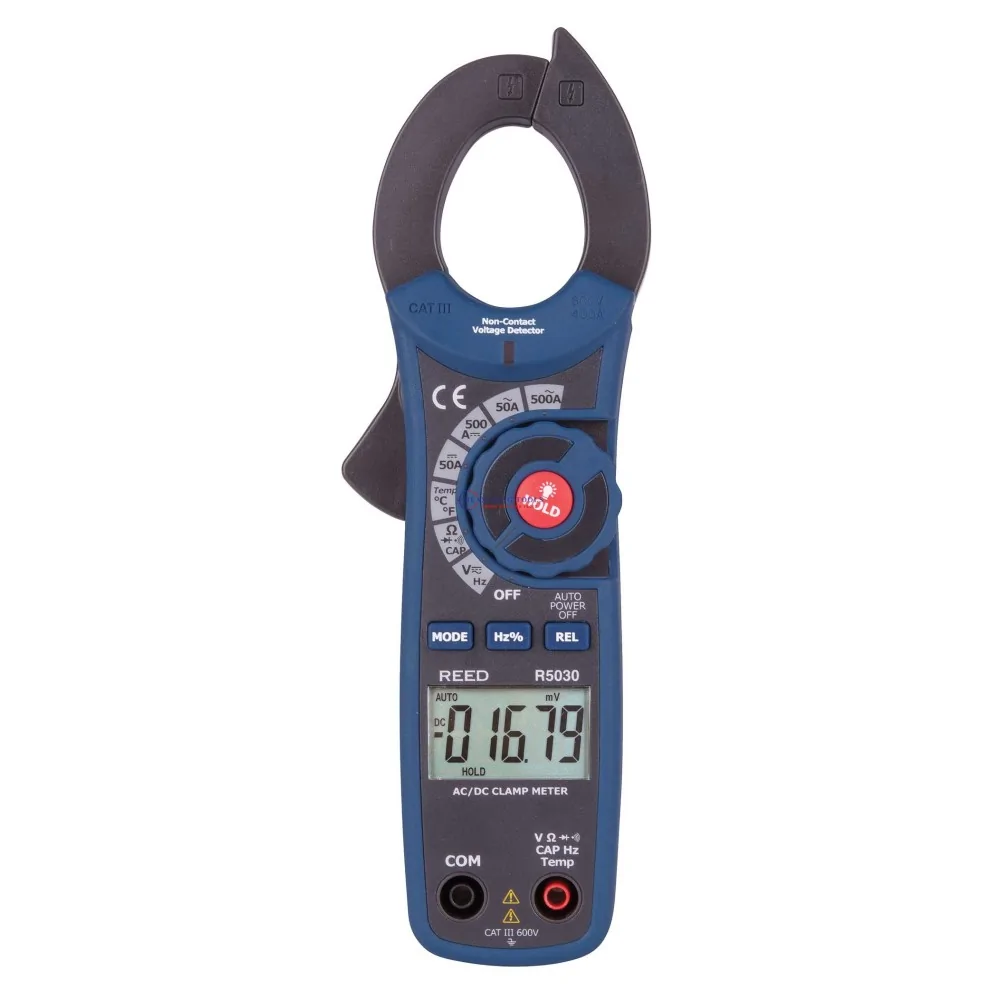

Reed R5030 Clamp Meter, 500A AC/DC W/Temp Reed Instruments R5030

This compact autoranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring a 50,000 count backlit LCD display, double molded plastic housing, the R5030 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip.

Features

• Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature
• 50000-count backlit LCD display with low battery and overrange indicators
• Built-in non-contact voltage detector with LED indicator
• True RMS AC measurements
• Display hold and relative mode
• Diode test and continuity check functions
• Durable double molded plastic housing
• Cat. III 600V safety rating

Ideal Applications for the REED R5030
Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems.
Facilities, building maintenance and electricians looking to troubleshoot electrical equipment installation problems.

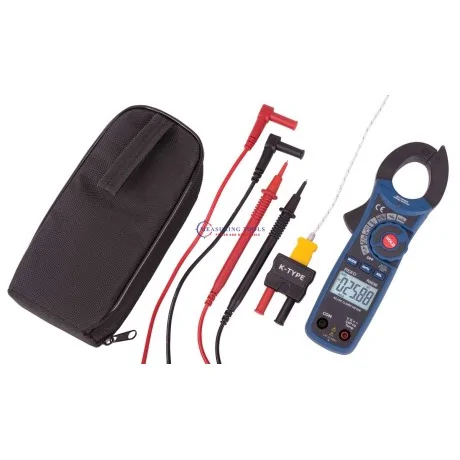

What's included with the REED R5030

• AC/DC True RMS Clamp Meter
• Test Leads
• Thermocouple Wire Probe
• Thermocouple Adapter
• Batteries
• Soft Carrying Case
