The Muya M9 is a mini portable multi-functional GNSS receiver, with a new generation of algorithm engine, Linux system, tilt survey, built-in 4G all Netcom and Bluetooth/Wi-Fi. It adopts a new appearance design, the magnesium alloy structure, and highly integrated module design. It is a perfectly multifunctional compact GNSS receiver. The Linux+Qualcomm MDM9628 Cortex-A7 intelligent system platform brings users efficient computing and unlimited expansion of product functions.
All Constellation and All Frequency GNSS Receiver which integrates high-precision positioning module, and supports BDS B1 / B2 / B3, GPS L1 / L2 / L5, GLONASS L1 / L2, Galileo E1 / E5A / e5b, SBAS L1, QZSS L1 / L2 / L5, and all frequency point signal reception and calculation of the whole system.
Built in intelligent high-precision inertial navigation module, real-time tilt compensation, let RTK measurement say goodbye to "flying point". The 4G full netcom solution based on Linux platform fully supports all telecommunications which has strong signal and more stable connection. The built-in large capacity lithium battery ensures the continuous working time of more than 9 hours under normal operation.
- 1408 channels UM980 UNICORECOMM engine board
- Multi-System, Multi-frequency
- GPS, GLONASS, GALILEO, BEIDOU, QZSS satellite tracked
- Full 90° Tilt compensation Technology
- Static, RTK
- Compatible with any CORS
- Static horizontal/vertical accuracy: 2.5mm/5mm + 1ppm
- RTK horizontal/vertical accuracy: 10mm/15mm + 1ppm
- CMR, CMR+, RTCM 2.x, RTCM 3.x RTK formats supported
- RS232/Bluetooth/4G/WIFI/NTRIP/WebUI
- Internal internet modems(micro sim slot)
- 32GB internal memory
- Voice messages, Automatic firmware updating
- Compact durable Magnesium alloy casing
- Data collection Android SurPad Field software
- Dust & weather resistant, IP65
- Light weight; 555gms with battery
- Pocket size; 100x100x61.5mm
- Built-in Battery, 9750mAh, 7.4V, ≥15hrs continuous operation
- Shock & Vibration; Withstand 1.5m pole drop onto the cement ground

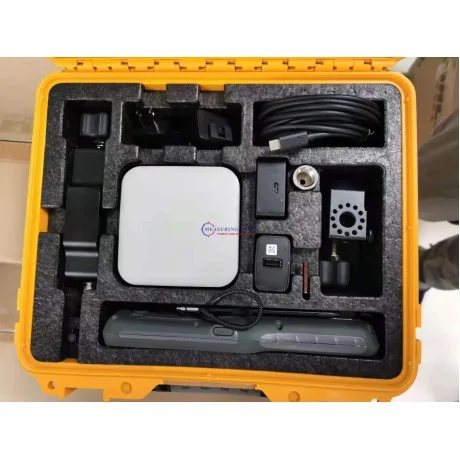

Package Includes:
- 1x Muya M9 Receiver Set
- 1x Muya Data Collector Set+Surpad
- 1x G61102 Pole clamp+vial+compass
- 1x G61207 Quick Release cradles
- 1x G61009 Snap-Lock Rover Rods 2m
