Multi-constellation and multi-frequency, E200 Designed for Rover

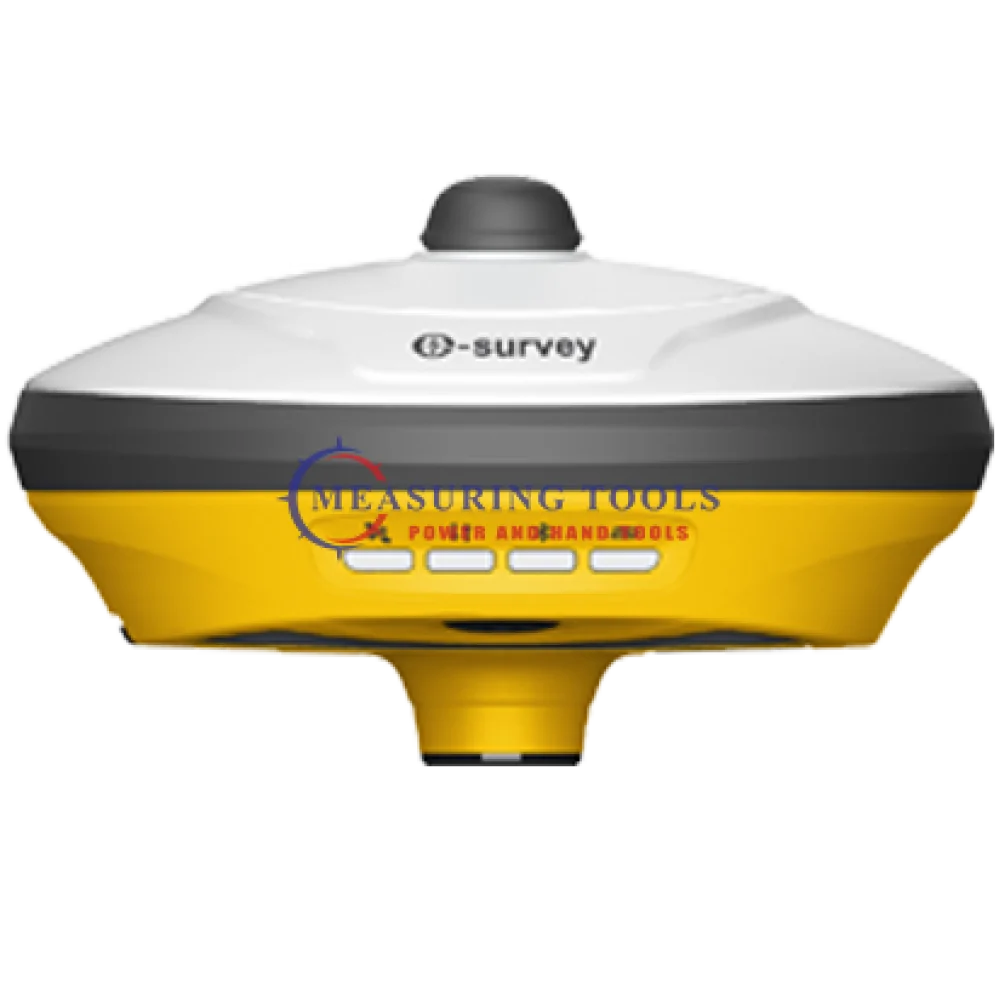

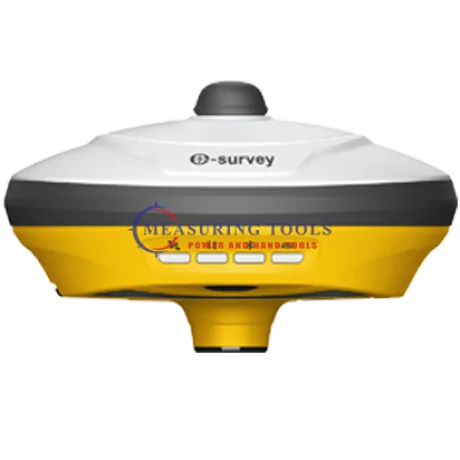

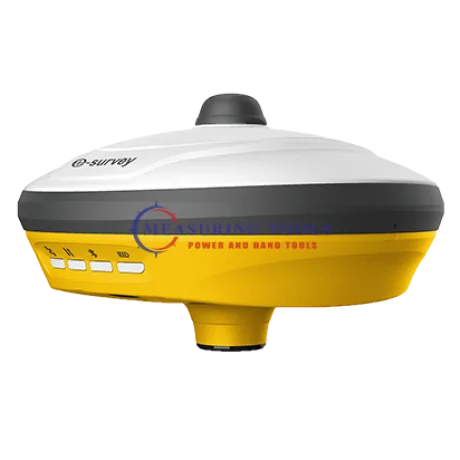

E200 is a rover receiver by eSurvey GNSS. The durable IP67 design makes it possible to work in various
of environments. Multi constellation and frequency tracking always gives a Fixed solution for your job.
The Global 4G Network and RX radio makes it suitable as a rover station.
With 800 channels of GNSS tracking, E200 provides stable and reliable accuracy. All GNSS signals are coming with standard including GPS, BDS, GLONASS, GALILEO, QZSS and SBAS.
eSurvey’ s innovation tilt survey solution provides a surprising experience. The sensor is adapted to various of working environments and can be ready within 10 sec. Maximum 60 ° incline angle ensures a
tilt-to-go survey without stopping your work.
Atlas is a service to provide global precision correction service over L-band satellites. With ATLAS subscription, E200 is able to achieve centimeter accuracy without any base station.
Powered by Atlas, the innovative aRTK technology operates on any Atlas-capable device by enabling it to maintain RTK-level accuracy, availability, and reliability when RTK corrections fail without additional cost.
It is able to view position status, set up working mode, download data and update firmware from Web user interface with any phone, tablet or PC.
Intelligent Voice: E200 will broadcast voice automatically to remind user the solution status is changed. It is also able to manually broadcast current working mode and solution status by short pressing power button.
E200 is light-weight design and is good for hand carrying. The small size design makes it possible for various of applications such as car and machine control.
E200 main body is using magnesium materials to provide strong shock and vibration resistant characteristics. IP67 certification ensures operation in various of tough environments.
- 800 Channels Hemisphere Phantom™ 40 GNSS Engine Board(Canada)
- Multi-constellation and multi-frequency, all available satellite signals tracked including GPS(USA), GLONASS(Russia), GALILEO(Europe), BEIDOU(China), IRNSS(India), QZSS(Japan)
- IMU/Tilt Survey compensation technology
- Static, RTK Supports long Baseline E-RTK
- Static horizontal/vertical accuracy: ±2/3mm+0.1/0.4ppm
- RTK horizontal/vertical accuracy: ±8/15mm+1ppm
- RTK formats CMR, CMR+, RTCM 2.x, RTCM 3.x
- 1-watt internal UHF Radio extending up to 8km supported protocols includes Satel, Trim Talk, South, Hi-Target
- Rechargeable built-in Li-ion 6800 mAh, 12hrs continuously field operation, USB type-C quick charger supporting vehicle charging
- Comes with data collector with Android SurPad Field Software
- Support other data collection Android/Windows software
- Compatible with any CORS
Package Details
- 1x E-Survey E-200 Rover Receiver Set
- 1x E-Survey P8II Data Controller Incl. Surpad Software
- 1x G61102 Pole clamp+vial+compass
- 1x G61207 Quick Release cradles
- 1x G61009 Snap-Lock Rover Rods 2m
