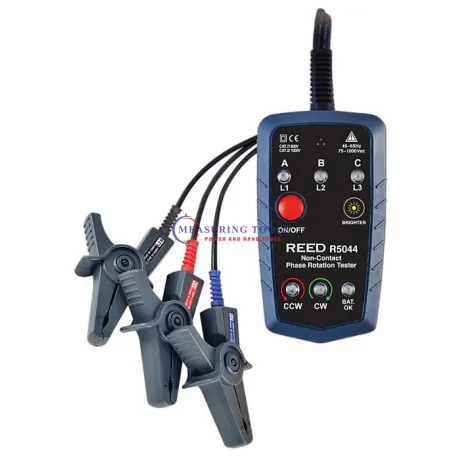

Reed R5044 3-Phase & Motor Rotation Tester, Non-Contact Reed Instruments R5044

This motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise). The R5044 features non-metal alligator clips that allow for safe non-contact measurements and includes back mounted magnets for easy measurement.

Features

• Non-contact voltage sensing alligator clips promote safety
• Color-coded leads (red, black, blue) meet IEC 60446 standards
• LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
• Adjustable LED brightness allows for measurement in sunlight and lowly lit environments
• Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase
• Durable housing with magnets frees hands and allows for easy measurement
• Low battery indicator

Ideal Applications for the REED R5044
Installing and troubleshooting 3-phase motors, pumps and controls

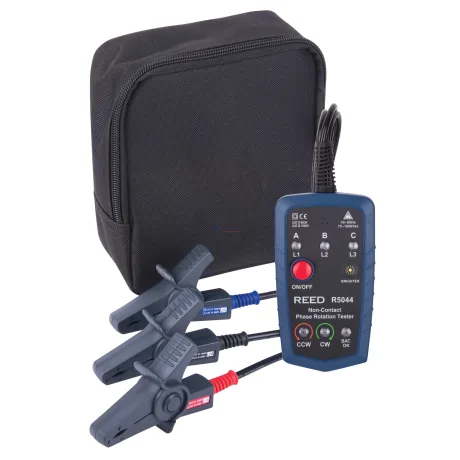

What's included with the REED R5044

• Non-Contact Phase Rotation Tester
• 3 x Color Coded Cables with Alligator Clips
• Battery
• Soft Carrying Case
