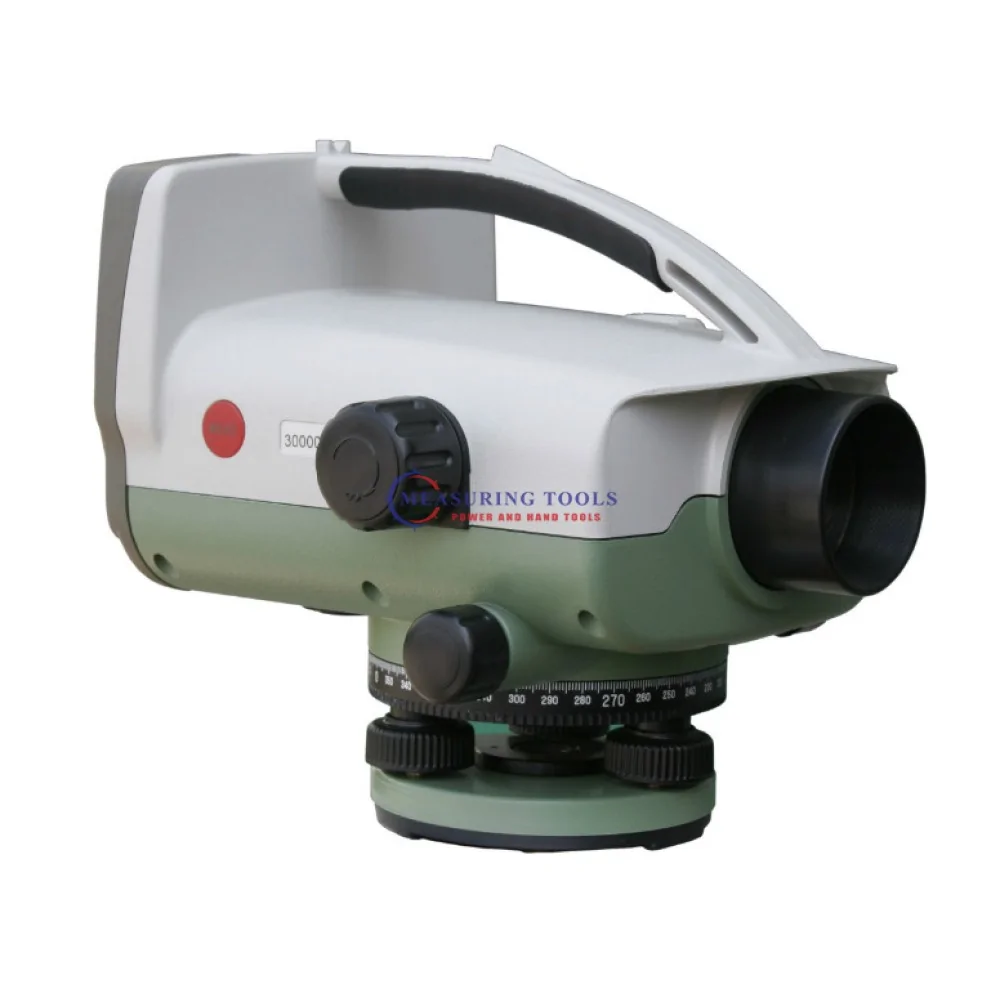

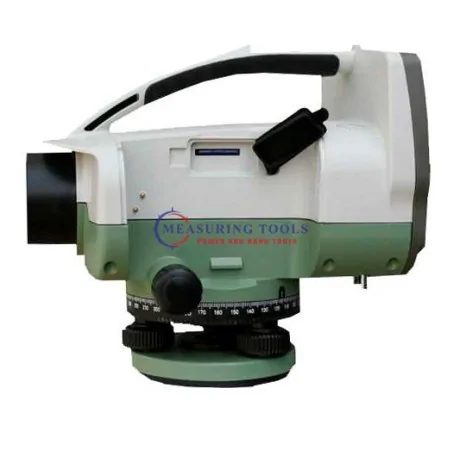

FOIF EL302A Digital Level features a faster and easier data capture and processing, digital level is accepted by more and more users; meanwhile it is becoming an important part in the FOIF product line
FOIF EL302A Digital Level is equipped with alphanumeric keyboard and professional on-board program, it can be used for high precise leveling of flat and sloping surface, subsidence and deformation monitoring, establishing 2nd and 3rd leveling control networks
With feature of digital products, FOIF EL302A makes your JOB easily and faster, save you time. Press one button to get the height difference and save the data in the internal memory or SD card. Easy one-touch operation, simply push the red button.
Quick height and distance result - the reading is displayed almost instantly, Reliable and error-free reading, even in dim light conditions, quicker and easier than an optical level
On board program, height difference measurement between back sight and foresight and has internal memory for data storage, support SD card. On board program such as BF, BFFB, BFBF, FBBF, Stake out, intermediate.
Has 3,000 points internal memory, or SD card data storage and Supports USB and RS-232C ports for data transfer.
- 2-105m Electronic measurement range
- 0.1mm Height and 1mm display Resolution
- 30x Magnification
- 45mm objective aperture
- 2.6m Field of view at 100m
- ± 0.7mm Electronic measurement accuracy Standard deviation of 1km double run
- ± 1.5mm Optical measurement accuracy Standard deviation of 1km double run
- 1m Minimum focus distance
- 14’ working range
- ± 0.5’’ Setting Accuracy
- 8’/2mm circular vial sensitivity
Package Includes:
- 1x FOIF EL302A 32x Digital Level
- 1x FOIF B2650-5m Barcode Levelling Staff
- 1x G21027 Self-locking, Aluminum Tripod, round tube, black
