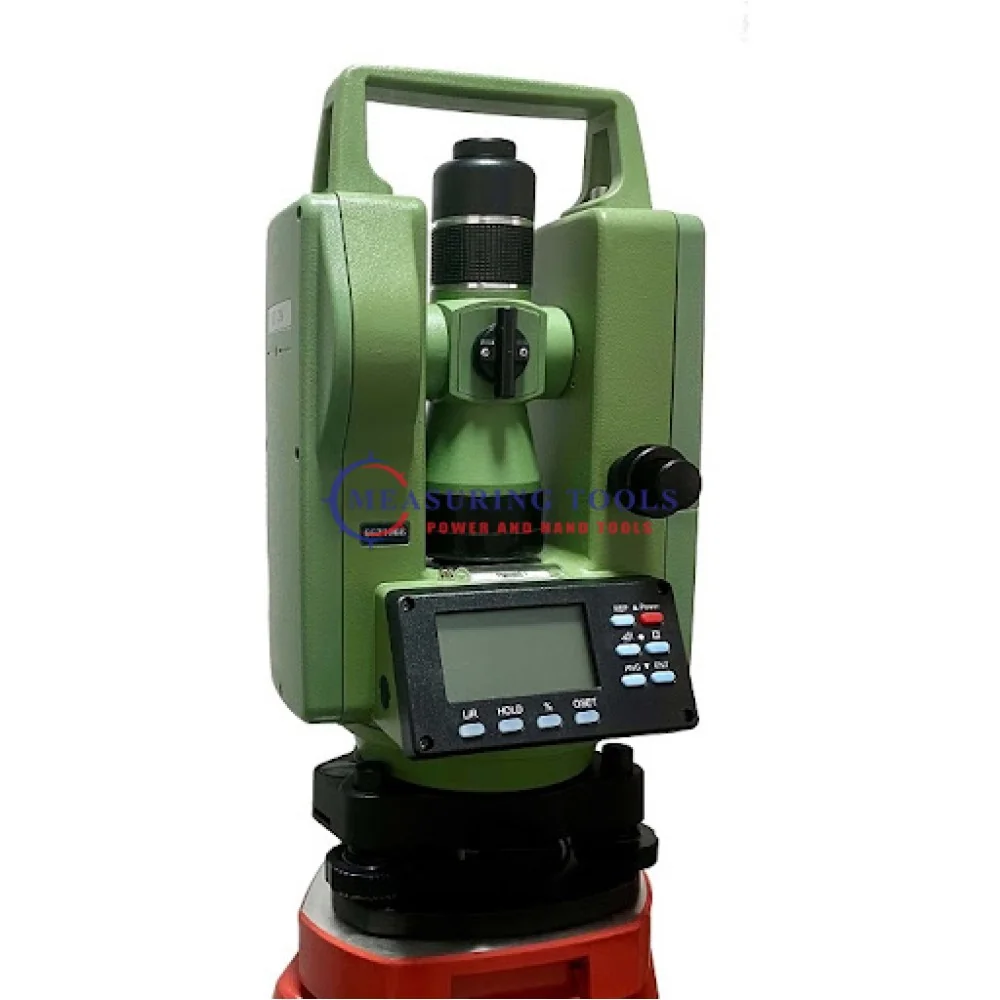

CDADI DE2A-L Digital Electronic Theodolite with Accessory CDADI DE2A-L-KIT

2" Angular accuracy
Magnification up to 30x
Ten-button interface panel that is easy-to-use
Up to 8 hours battery life (uninterrupted work flow)
Dual Backlit LCD display
Compact and lightweight build
Build-in Laser Pointer

Angle Measurement

• Type: Absolute angle encoder system
• Detection Method: Level Radial, Vertical Radial
• Minimum Reading: 1”, 5”, 10” or 20”
• Accuracy:2"
• Plate/Tubular Bubble Vial: 30”/ 2 mm
• Circular Bubble Vial: 8’ / 2 mm

Tilt Sensor/Compensator

• Range: ±3’
• Type: Single Axis
• Method: Liquid-electric detection
• Telescope
• Image: Erect
• Magnification: 30x
• Diameter of Objective Lens (Aperture): 47 mm (1.85 in)
• Focus Distance: 1m (39.37 in) to infinity
• Field of View: 1°30' (26 m/1,000 m)
• Ratio of Stadia Lines: 100/0
• Resolving Power: 3.75”
• Length of Tube: 162mm (6.37 in)
• Reticule Illumination: Yes, built-in
• Quick Sights (Rough Sights): Yes

Laser Plummet

• Accuracy: 1.5 mm at 1.5 m instrument height
• Class: Class-2
• Wavelength: 635nm

Laser Pointer

• Accuracy: ≤5”
• Range Indoors: 150m
• Class: Class-2
• Wavelength: 635nm
• Range Outdoors: 150m

Battery/Power

• Power Source: Rechargeable Ni-MH Battery
• Battery Life: Up to 8 Hours
• Battery Life Alert: Visible alert

Display and Keypad

• Type: LCD- Segment
• Sides: Dual
• Keys: Ten-button keypad
• Touchscreen: No
• Backlight: Yes
• Pixels: N/A

Temperature & General

• Operating: -10°C to 45°C (-50°F to 113°F)
• Storage: -20°C to 45°C (-68°F to 113°F)
• Weight: 4.5 Kg (9.92 lbs)
• Dimensions: 190mm×170mm×355mm (7.48" L x 6.69" W x 13.97" H)
• Tribrach: Detachable

Package Includes:

• 1x CDADI DE2A-L Digital Laser Theodolite
• 1x G21027 Self-locking, Aluminum Tripod, round tube, black
• 1x G71005 5M Leveling Staff
